PRODUCT INTRODUCTION
PETG-2021 & PETG-2022 & PETG-2023: is designed to enhance your product with a rich, matte finish and pleasing colors and present three shrinkage: low, middle, high shrinkage to fulfill all kinds of normal and difficult bottle shapes. This High-Yield PETG shrink film extends the "paper look" into a full 360° label decoration. The film's crisp matt appearancecomes from reflectance rather than conventional matt ink, making it easy to work with. Fully matt, this upscale film offers a sought-after alternative to the glossy, clear film currently on the market.
Product Parameters

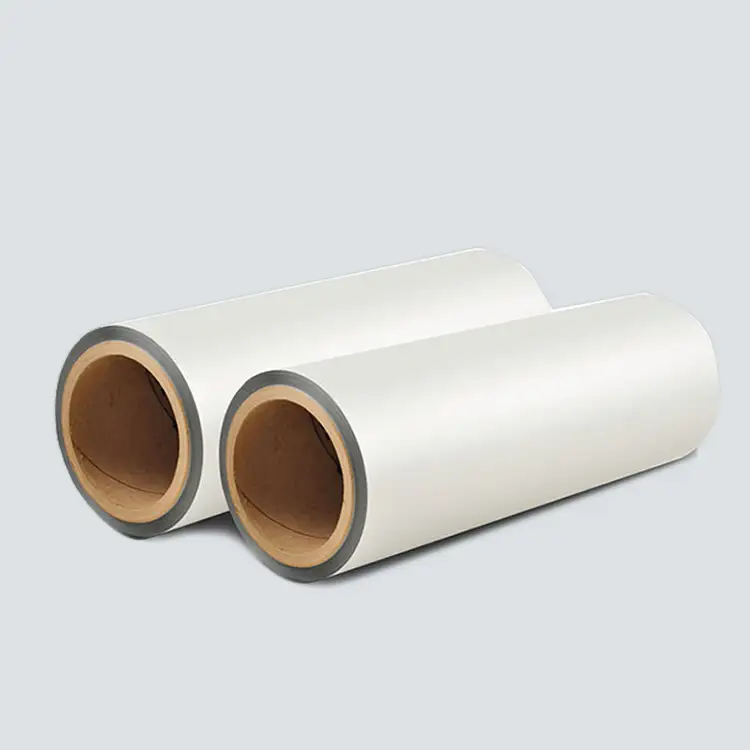

Name | PETG Shrink Film |
Product number | PETG-2021 & PETG-2022 & PETG-2023 |
Brand | HYF |
Material | PETG (Glycol-modified Polyetthylene Teraphthalate) |
Thickness | 30mic - 50mic |
Width | 350mm - 1200mm |
Width Tolerance | ±5% |
Average Thickness Tolerance | ±10% |
Density | 1.32 g/cm³ |
Color | Transparent |
Supply Ability | 12,000 Tons Per Year |
Product Characteristics
- Excellent lay-flat properties
- Proper ink adhesion and shrinkage ensure uniformity
- Gauge uniformity so you have fewer rejects and greater processability
- Superior print resolution
- High transparency
- Surface brilliance
- High-impact strength
- Food grades available
Technical Data Sheet
No | Item | Unit | Typical Value | |||
1 | Thickness Limit Deviation | % | ±5 | |||
2 | Average thickness deviation | % | ±3 | |||
3 | Width Deviation | mm | 0~5 | |||
Classification Criteria | Low Shrinkage | Middle Shrinkage | High Shrinkage | |||
4 | Heat Shrinkage (%) Hot Water (90℃ /10s) | MD | ≤7 | ≤5 | ≤ 3 | |
TD | <60 | 60~70 | ≥70 | |||
5 | Tensile Strength (MPa) | MD | ≥40 | ≥40 | ≥40 | |
TD | ≥200 | ≥200 | ≥200 | |||
6 | Elongation At Break (%) | MD | ≥400 | ≥400 | ≥400 | |
TD | ≥35 | ≥35 | ≥35 | |||
7 | Haze | % | ≥70 | |||
8 | Gloss(45°) | - | ≤ 30 | |||
9 | Density | g/㎤ | 1.32 | |||
10 | Dyne | mN/m | 40 | |||
11 | Coefficient of Friction | μs | ≤0.60 | |||
μk | 0.55 |
Product Application
Innovative packaging is silent salesman. PETG Shrink film could be produced to different shrink labels, which could make the product stand out on the shelf and increase consumer awareness. Whether you’re in the beverage, dairy, food, health and beauty, household, or home and garden business, Shrink films maximize shelf visibility, so your products get noticed. This fast-growing technology is ideal for launching new or redesigned products.
1) Full or partial body shrink sleeves
2) Full or partial body roll sleeves
3) Multi-packs
4) Tamper-evident bands
5) Wine capsules and disk plates
