PRODUCT INTRODUCTION

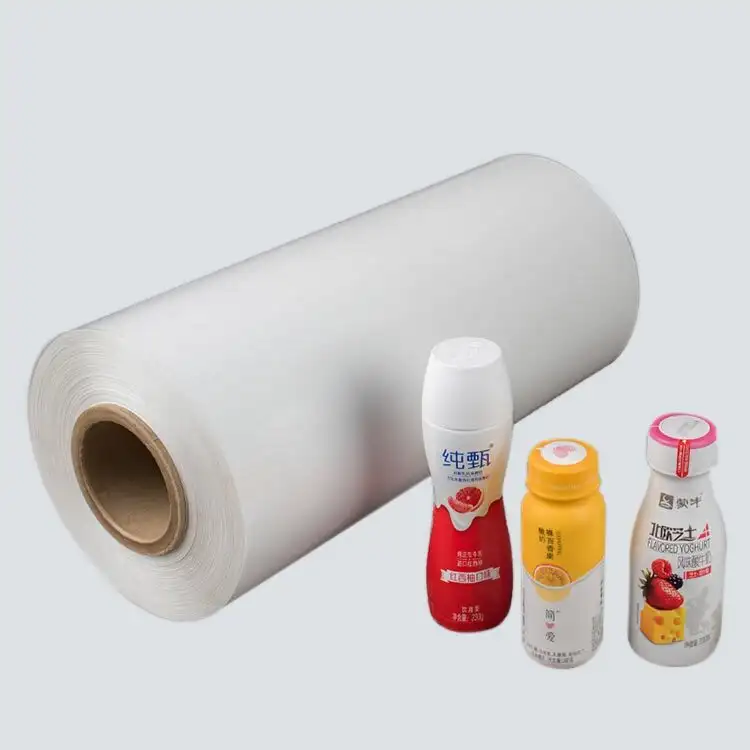

DGN233: is a new high-performing light blocking white opaque PETG shrink film with an opacity of approx. 85% to achieve the desired opacity. It introduces maximum light blocking properties into the film process and satisfies the market need for films that are cost-effective, process efficient and improve light barrier characteristics. Exhibiting high shrinkage up to 78%, which offers high performing shrink percentages for optimal design freedom while eliminating the need for high-barrier primary containers.
Product Parameters
Name | White PETG Shrink Film |
Product number | DGN233 |
Brand | DGN |
Material | PETG (Glycol-modified Polyetthylene Teraphthalate) |
Thickness | 30mic - 50mic |
Width | 350mm - 1200mm |
Width Tolerance | ±5% |
Average Thickness Tolerance | ±5% |
Density | 1.45 g/cm³ |
Color | White |
Supply Ability | 12,000 Tons Per Year |
Product Characteristics
DGN’s PETG white shrink film affords a unique blend of benefits across applications, including:
- Light-blocking with transmission rates of < 1%
- Maintains vitamin protection
- Maintains product color
- Whitest film (gloss) compared to current options
- No multiple flood coat printing required to achieve light blocking characteristics
- Prints and seams like PETg
- Higher modulus for easy application
Technical Data Sheet
Properties | Unit | Data | Test Method | ||
Thickness (Tolerance : ±10%) | μm | 35~50 | ASTM D374 | ||
Density | g/㎤ | 1.45 | ASTM D792 | ||
Haze | % | ≥100 | ASTM D1003 | ||
Whiteness | - | ≥80 | ASTM D2457 | ||
Dyne | mN/m | 40 | ASTM D2578 | ||
Yield | ㎡/kg | 35㎛ | 19.7 | -- | |
40㎛ | 17.2 | ||||
45㎛ | 15.3 | ||||
50㎛ | 13.8 | ||||
Coefficient of Friction | μs | - | 0.60 | ASTM D1894E | |
μk | 0.55 | ||||
Tensile Strength | MD | Mpa | ≥35 | ASTM D882 V=100mm/min | |
TD | ≥150 | ||||
Elongation At Break | MD | % | ≥300 | ||
TD | ≥40 | ||||
Heat Shrinkage (Tolerance : ±3%) | 60℃ | % | 0 | 0 | ASTM D1204 |
70℃ | 0 | 10 | |||
80℃ | -4 | 58 | |||
90℃ | 0 | 72 | |||
100℃ | 2 | 78 |
Product Advantage
Product Application
For some industris, which want the shrink labels to provide light-barrier protection,such as food, beverages, nutraceuticals, vitamins, supplements and other light-sensitive consumer packaged products, white PETG shrink film are suggested to be used to reach some requirement, which can improve the goods' shelf life. And white PETG shrink sleeve is widely used in the following industries:
- Beverage
- Dairy
- Juices
- Organic beverages
- Isotonics
- Food
- Health and beauty
- Home and garden
- Household
