Product Introduction

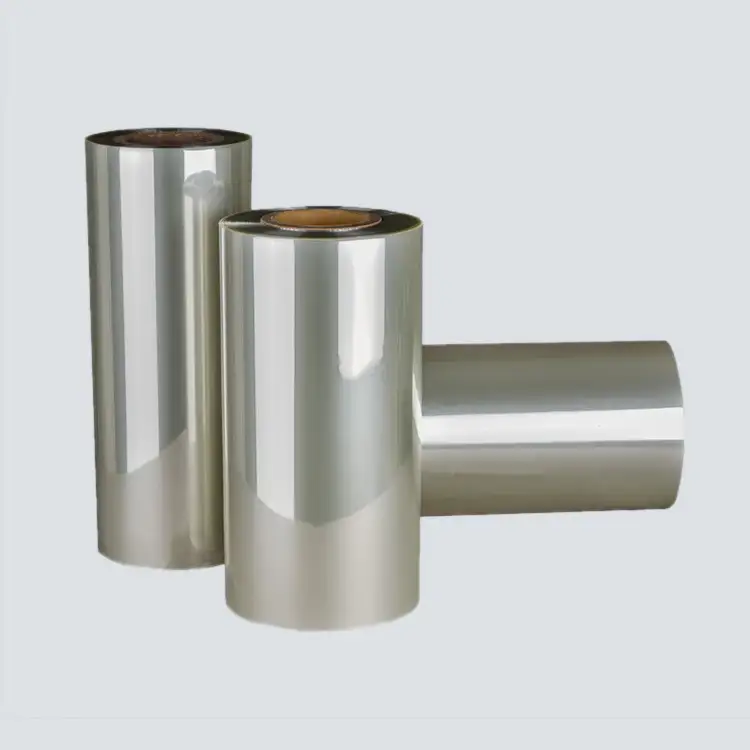

PET/PETG Shrink Films - is the Label Film printing material which is widely used for wrap full of the bottle with the feature of high tensile strenth, good flatness and fit for wide printing,perfect printing performance for shallow network printing Even and high shrinkage and excellent thermal shrinking stability. Widely used for bottle film labeling, eg. beverage bottles packaging,cleaning and bathing products packaging and cosmetics packaging.
PETG-2012: is a moderate general purpose PETG shrink film suitable for a wide range of container geometries and printing methods (ROTO-GRAVURE to FLEXO PRESS). Exhibiting ultimate shrinkage values about 70%, displaying excellent printability and user-friendliness in the shrinkage tunnel, PETG-2012 is a great choice for a wide range of full-body labeling application.
Product Parameters
Name | PETG Shrink Film |
Product number | PETG-2013 |
Brand | HYF |
Material | PETG (Glycol-modified Polyetthylene Teraphthalate) |
Thickness | 30mic - 50mic |
Width | 350mm - 1200mm |
Width Tolerance | ±5% |
Average Thickness Tolerance | ±10% |
Density | 1.32 g/cm³ |
Color | Transparent |
Supply Ability | 12,000 Tons Per Year |
Product Characteristics
Physical Property | Very High Gloss Percentage: Smooth, transparent, and glossy |
Excellent Scuff Resistant: Highly durable, excellent shock and tear resistant | |
The Most Heat Resistant material: Most resistant to heat. Higher shrinking temperature than PVC | |
The Best Shrinkage Performance: Best shrinkage performance. Stable shrinkage with no waves or wrinkles. | |
Environmental Health | Eco - Friendly and Easily Recycled: Eco-friendly and recyclable. |
Technical Data Sheet
Properties | Unit | Data | Test Method | ||
Thickness (Tolerance : ±10%) | μm | 35~50 | ASTM D374 | ||
Density | g/c㎡ | 1.32 | ASTM D792 | ||
Haze | % | ≤7.0 | ASTM D1003 | ||
Gloss(45°) | - | ≥100 | ASTM D2457 | ||
Dyne | mN/m | 40 | ASTM D2578 | ||
Yield | ㎡/kg | 35μm | 21.6 | -- | |
40μm | 18.9 | ||||
45μm | 16.8 | ||||
50μm | 15.2 | ||||
Coefficient of Friction | μs | - | ≤0.60 | ASTM D1894E | |
μk | 0.55 | ||||
Tensile Strength | MD | Mpa | ≥50 | ASTM D882 V=100mm/min | |
TD | ≥200 | ||||
Elongation At Break | MD | % | ≥400 | ||
TD | ≥35 | ||||
Heat Shrinkage (Tolerance : ±3%) | 60℃ | % | 0 | 0 | ASTM D1204 |
70℃ | 0 | 2.7 | |||
80℃ | 0.2 | 42.1 | |||
90℃ | 0.7 | 61.8 | |||
100℃ | 4.6 | 69.2 |
Product Advantages
For over 10 years we have dedicated ourselves to nature and its uniqueness.
Product Application
PETG Shrink Films has an extensive variety of applications:
Widely used for all kinds of bottle film labelling, eg. beverage bottles packaging, health and beauty, cleaning and bathing products packaging and cosmetics packaging. It could make the product stand out on the shelf and increase consumer awareness by be printed brand-designs with 360° coverage.
1) Full or partial body shrink sleeves
2) Full or partial body roll sleeves
3) Multi-packs
4) Tamper-evident bands
5) Wine capsules and disk plates
